MOST ADVANCED - Chaff cutter, Hammer Mills, filed fodder crop

harvesting, Silage making, silage packing machine, Mobile Feed Plant, and T M R block making are the next steps towards Animal Feed & Napier Feedstock solutions​

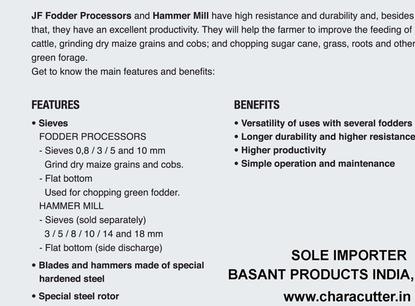

JF Fodder Processors have high resistance and durability and, besides that, they have an excellent productivity. They combine quality, strength, endurance and accuracy in the processing of several crops. Ideal for farmers who need to feed their livestock in a daily basis, JF fodder processors are indicated for animal fodder production, such as cattle, poultry and pigs among others.

Its powerful and quick rotor has high resistant hammers and knives that grind grains and maize cobs for producing concentrade ration besides cutting grass, sugar cane and roots for green fodder preparation.

Application: Grind dry corn grain and cobs, chop sugar cane, tropical grasses, cassava, fine branches and other green products with superior quality.



Characteristics

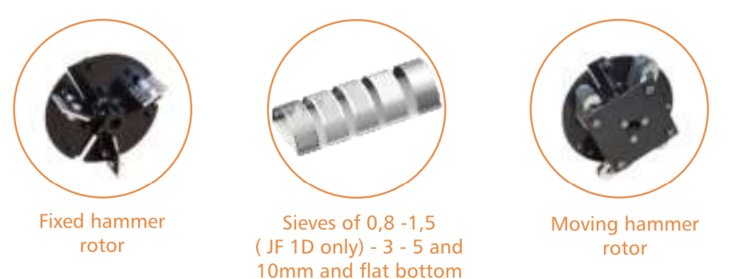

Fodder Processors with productive capacity according to the technical specifications table of this document, equipped with knives and hammers built in special and hardened steel, complete rotor in carbon steel, moving hammers with 4 working lifes, adjustable counter-knife built in special steel, sievesof 0,8mm, 1,5mm (JF 1D only), 3mm, 5mm, 10mm and flat bottom for special usage in maize grain, maize cobs and green products in general (forage), optional cyclones, bases for driving by electric motors, diesel/gasoline, 3-point likage/ tractor PTO. In order to know versions and accessories available as well as required power for each model, please check the technical specifications table.



Benefits



• Double function in one single equipment: chop green forage and grind grains;


• Higher durability and resistance;


• Full usage of ground material resulting in higher production performance;


• Easy operation and low maintenance;


• Optional cyclone that make easy ground material bagging;


• Available with base for driving with electric motor, diesel /gasoline and tractor PTO.



TECHNICAL DETAILS
 Chaff Chopper Machine ( SIZE 2 TO 50 M)
Dalia making machine
Pulveriser Machine.
Suger cane crusher as animal feed

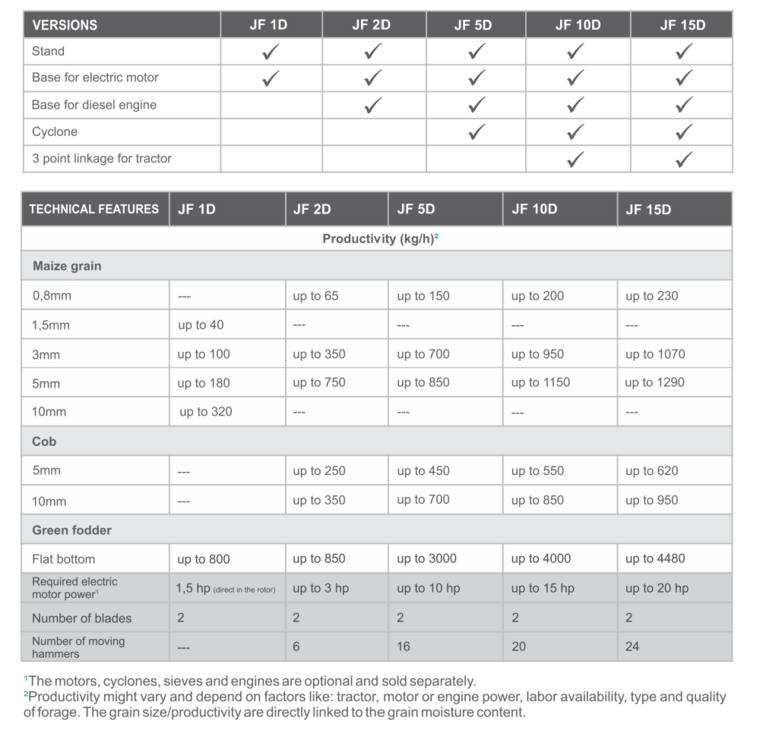

SPECIFICATIONS


Maize grain Productivity*


Sieve size 0,8 mm    150 to 200 kg/h
Sieve size 3 mm      750 to 950 kg/h
Sieve size 5 mm     850 to 1150 kg/h

Cob

Sieve size 5 mm     350 to 550 kg/h
Sieve size 10 mm   700 to 850 kg/h

Green fodder ( CHAFF CUTTER)

Flat bottom  2500 to 4000 kg/h


  • Required electric motor power 10 hp
  • Number of blades 2
  • Number of moving hammers 20

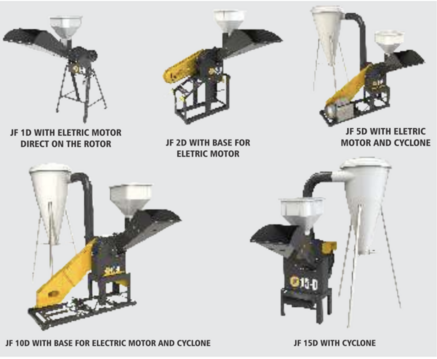

Versions available

- flat base for electric motor

- flat base for diesel motor

- tilted base for electric motor

-TRACTOR OPERATED

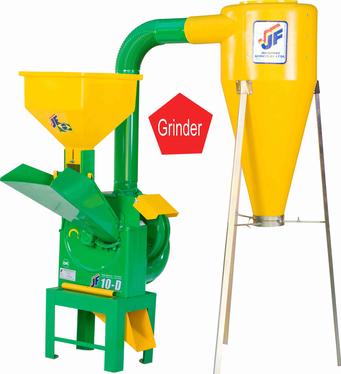

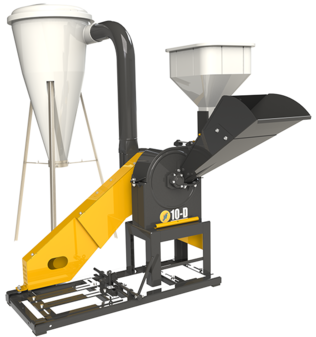

MODEL 10 D WITH CYCLONE

IJF1D / JF2D / JF5D / JF10D / JF15D / JF70

IMPORTED FROM BRAZIL

​

MILL GRINDER ANIMAL FOOD PROCESSORS FOR DAIRY FARMING

3 in one machine


  1.  Chaff Chopper Machine ( SIZE 2 TO 50 M)
  2. Dalia making machine
  3. Pulveriser Machine.
  4. Suger cane crusher as animal fee
  5. Use full to make food for Cows, Sheeps, goats, chicken, fish organic grinding, napier fine shreeeding, bio coal, CNG etc

​
