MOST ADVANCED - Chaff cutter, Hammer Mills, filed fodder crop

harvesting, Silage making, silage packing machine, Mobile Feed Plant, and T M R block making are the next steps towards Animal Feed & Napier Feedstock solutions​

The Multi-forage cutter  JF 1000 AT S3 hits the market to open a new world of possibilities to the farmer and making your JF precision havester more versatile, allowing and making easier the harvesting of all type of forage.

This equipment allows harvesting in any direction and independent of sowing line, including intercropped systems. Its dimension, design and final composition causes less compat to the soil, high productivity, lower tractor fuel consumption and the best market cost-benefit ratio.



Benefits and offers



• Harvesting of 2 rows³ of maize and sorghum, super napier and all types of tropical grasses efficiently, can accept to cut very fine chop size low as 2 mm can be used in Bio Coal , CNC, CBG etc,


• Wider “mouth” for easier harvesting of sugar cane and tropical grasses;, Convaor also provided for stationery models


• Increase of productivity of harvester with low power requirement;, upto 20 tons in stationery mode per hr


• Labor and fuel saving if compared to using 3 ft full mouth opening chute for silage making maize for comtractors


• Simple and strong transmission, built with resistant gearboxes for lower maintenance, with safety pin technology

• All spares parts are keep stocks at our ware house at AGRA UP INDIA

• It has a maximum cutting width of 0,92m for harvesting forage planted in row, broadcast, intercropped systems and in any direction, increasing substantially the productivity.

- "Z" Technology rotor (flywheel) blade: this patented feature from JF gives the most precise chop of all harvesters in the market. Having uniform and even chopped particles is one of the most important attributes of one forage harvester, as this result in better quality silage preservation, less loss of forage and higher voluntary intake of forage by the animals. Our "Z" technology also make the knife to chop and blow at the same time, avoiding to have extra blowers on the rotor which only take more power and increase the probability of machine jamming.

- 10 blades in rotor instead of 6 : this gives more productivity and higher chopping precision, resulting in better packing in silage pit/bag and less forage loss.

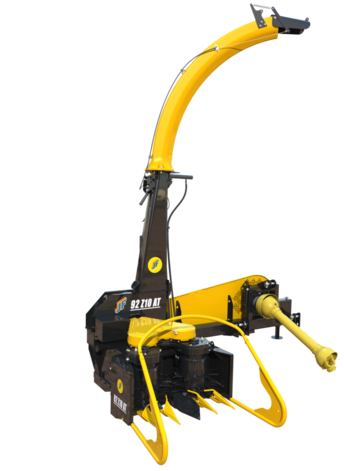

- On JF 92 Z10 you can choose from 18 chop sizes from 2 to 55mm. This is specially important when you are chopping different types of forage like maize, grasses, sugar cane. Each forage needs a different chopping length for being more efficient on silage making or rummen digestion. Also when forages a drier than normal, you want to have a smaller cut size as their particles tend to be longer when dry. In modern farming you will use several types of forage and not only one, so you need a harvester that can change the chop size. This is a standard worldwide.

- Our machine when you use 5mm and smaller chopping lengths, you will have almost all maize grains cracked, because of its blade technology and drum synchronization. And if you don't crack the grains in maize silage, then all grains will be wasted and there is no point at all in making silage.

- JF's transmission system is a state of the art technology, giving efficient and frictionless transmission of power for lower maintenance and higher productivity.
- We designed our machines for tough jobs, even for cutting sugar cane, so the machine is robust and has lower running cost than other machines.
- Our "Z" technology blade together with our unique and precision manufactured transmission system gives a machine with the highest productivity in the market
- Our star shaped blades for cutting the stalks deliver a precise cut which is very important for plant regrowth
- OUr blades, gears and shafts are made of the highest quality material and receive specific hardening process for longer durability and lower maintenance requirements.
- JF is the world's Nº1 forage harvester manufacturer, well know in the 5 continents and over 55 countries.

FRONT OR BACK ROW TYPE

JF AT1000 Equipment with technology inherited from the renowned JF   technical dimensions to meet the farmer who has the cane as its main source of forage and needs a powerful machine and that is dimensioned to work hard. The provides high yield and resistance, while maintaining excellence in uniformity chopped. Equipped with controls and hydraulic outlet nozzle and fairing, which make practical sugarcane harvest for forage.

FEATURES

Fairing Polyethylene
Less friction in the product inlet
Ease in raising cane lying

Transmission cardan box
Power gain

Full hydraulic control
Easy handling of the spout

napier grass special

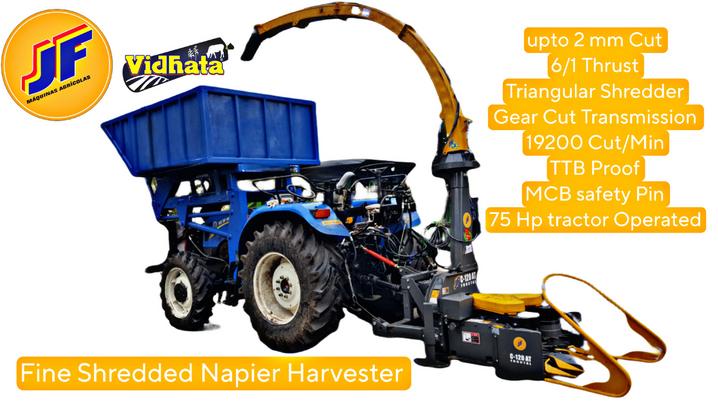

 SUPER NAPIER ++ HEAVY DUTY FORAGE HARVESTER FOR BIO CBG PROJECTS EXTRA HEAVY DUTY

FORAGE HARVESTERS, INDEPENDENT  ROW / FRONT OR BACK ROW

BEST FOR CO4 , CO 5, MAIZE , JWARI , BAJRA  AND ALL TROPICAL GRASSES

​MADE IN BRAZIL

JF RS AT1000

MODEL AT1000/Z10/ /C90 available in various variants

(A) Back side mount

(B) Front/Back C120

(C) Back RS AT1000

(D) Side Mount

(E) Single Row Or Independent 3 ft

(F) ACCESSORIES - BUCKET N REVERCE STEARING

Capacity up to 300 Kg / Min. / upto 10-15 tons / day

Cut sizes (2mm, 3 mm, 5 mm, 8mm, 10mm , 12mm by change of gear

Number of rotor 1 / 6 :1 thrust

Number of rows  INDEPENDENT 1 METER / or single row

Number of rotor blades 10  with auto sharpner

Power source tractor PTO 55 plus for AT1000 OR / 45 HP FOR C90

Number of gathering drums 6 FOR AT1000 AND FOR C90 4 DRUMS

Required revolution at PTO 540

Weight 870 Kg / C 90 680 KG

Transmission system PTO SHAFT

Striving for innovation and continuous improvement, JF presents to the market JF 1600 AT S3 featuring the new rotor with 15 blades and with redesigned discharge chute in order to improve the forage discharge into the trucks and wagons.



JF 1600 AT S3, featuring a robust header with 1,6m working width, harvests several types of fodder crops independent of planting in row or broadcast. It features also the powerful rotor with 15 big blades with “C” technology, which results in excellent chopping quality and kernel cracking action with no need of additional equipment.



Another highlight is the chainless and beltless drive system, resulting in a more robust, simpler maintenance and more effective transmission of tractor power to the machine.

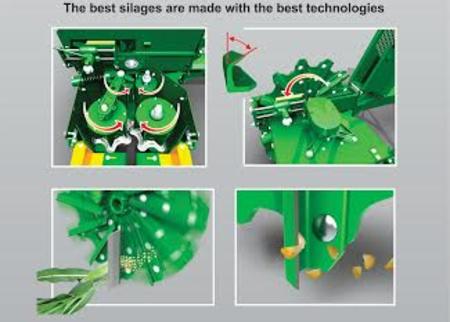

To attend the farmers around the world wishes, JF presents the innovative Kernel processor “+PRO”, which can be used in combination with our powerful “C” technology blades, together they can ensure great quality of particle and KPS, increasing the silage nutritional quality.

Benefits



• Kernel Processor System +PRO: Increase of kernel processing score (KPS) for more milk and beef production;

• Row-independent and multi-forage harvesting with 1,6m working width;

• Direct drive transmission system without belt/chain for taking better advantage of tractor power and easier maintenance;

• Fully articulated frame and 2 support wheels with hydraulic adjustment allows harvesting in uneven terrains without damaging the equipment frame and relieves tension on tractor 3-point linkage;

• Frame designed for side, front or rear harvesting, allowing opening of fields as well as easier harvesting in small plots and edges;

• Powerful rotor with 15 blades with “C” technology for high quality particle distribution; cut and throw action in a single operation; and kernel cracking with no need of additional devices;

• Designed for harvesting biomass crops like elephant and napier grasses and other crops like tea tree and moringa.

At JF, we take your forage seriously! What about you?

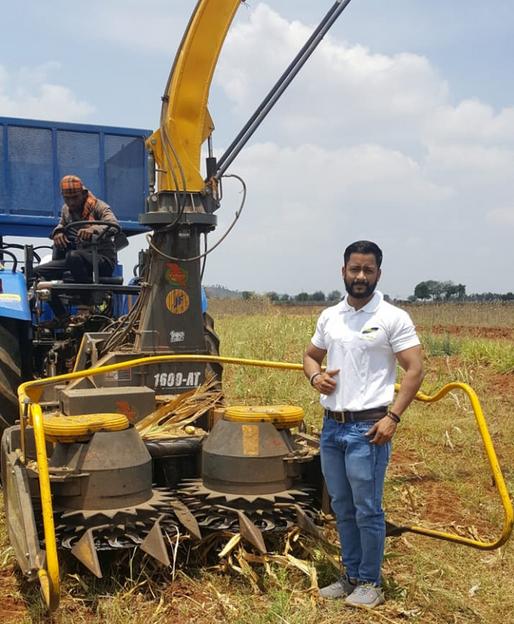

Find out why JF 1600 AT is the farmers’ favorite solution for harvesting sugar cane, tropical grasses and for using higher power tractors.

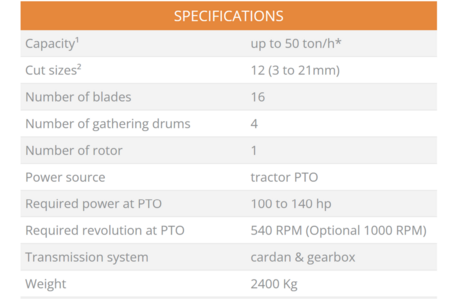

Benefits

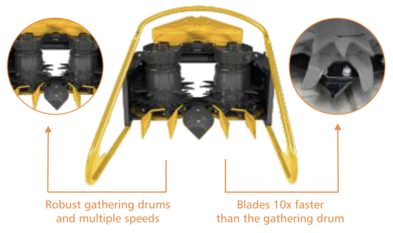

Wider row-independent header with front drums, gathering platform, and aligners with an exclusive design for constant harvesting flow and lower stress for transmission. In maize & sorghum it harvests 3 rows at a time with row spacing of 45 cm; and 2 rows at a time with row spacing of 90 cm.



Unmatched versatility: designed for harvesting sugar cane, tropical forage such as napier and elephant grass, as well as winter forage like oats and barley;



Heavy-duty transmission calculated for tough jobs, featuring special gearboxes;



Extra-sized gathering platform with 4 drums and spring-loaded drum for a more precise chopping, as well as central lubrication system for quicker maintenance;



16 extra-sized “C” technology rotor blades for higher processing power and chopping precision with built-in sharpener;



12 chop sizes available with easy shifting, perfect for working in various forage, harvesting, and dry matter conditions.

Videos

JF1600 MODEL
